Testing and validating autonomous vehicle behavior is challenging. Doing so while the vehicle is 10,000 feet in the air is even more challenging.

Research

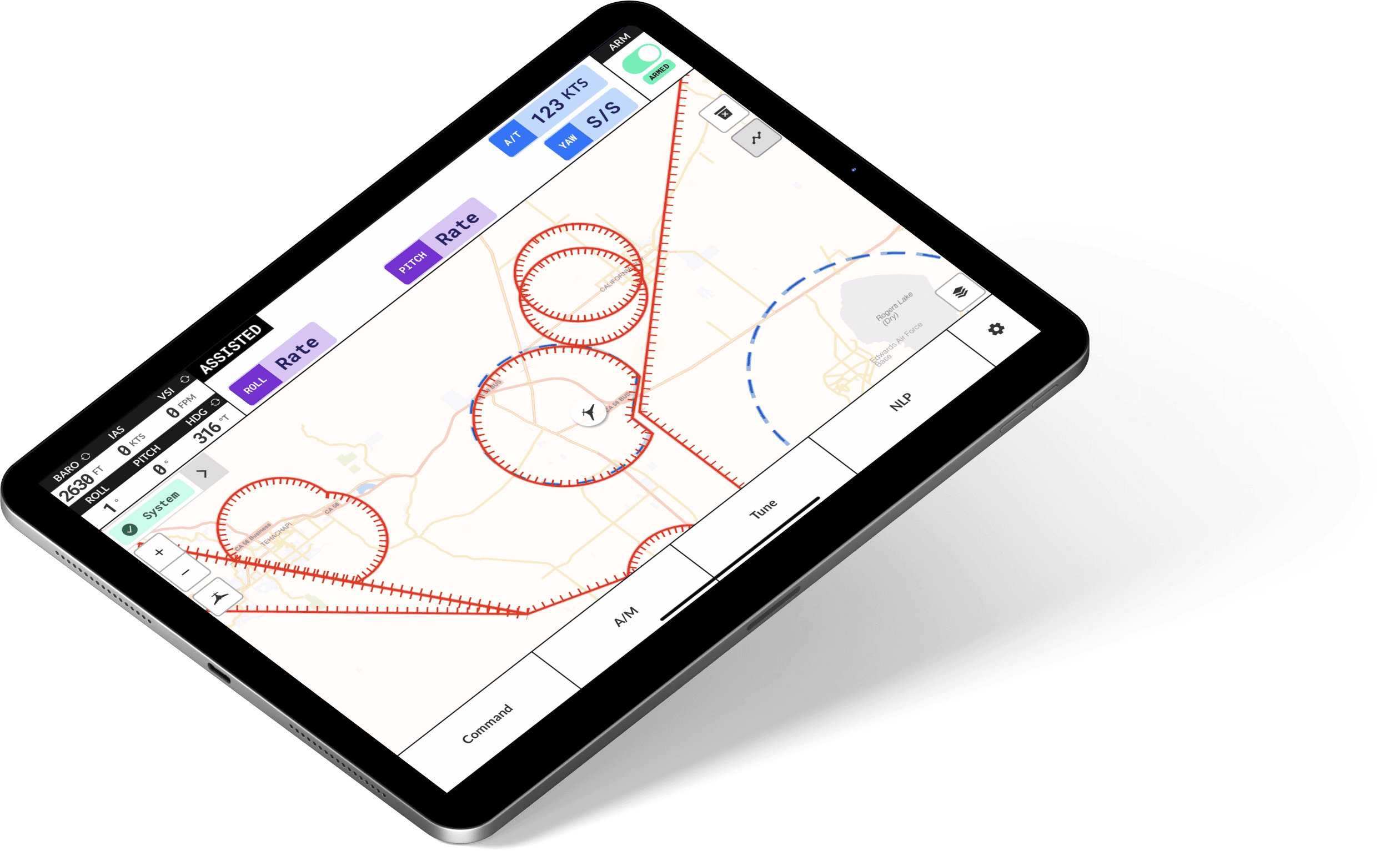

At Merlin Labs, I have been leading design and product development to achieve safe and efficient flight testing. The primary goal was to develop a simple and powerful interface that pilots can control from a tablet. Leveraging web technologies allowed for more rapid feature-development, reliabilty from a stable and known ecosystem, and having a flexible runtime environment (BYOB - Bring Your Own Browser).

I conducted usability interviews with our test pilots which helped greatly understand their needs and wants. Aside from monitoring the state of the aircraft (data such as altitude, airspeed, etc. that a Primary Flight Display would give you), pilots had to perform a fixed set of actions:

  • Change the flight mode (for different levels of autonomy)
  • Perform a set, pre-defined maneuver
  • Tune parameters
  • Check diagnostics/health

Given that these actions were mostly distinct from each other, I designed the UI to maximize each interaction area. This allowed pilots to access parts of the application more reliably, since wind/turbulence was unlikely to cause them to press a wrong button.

I designed a design system in Figma which helped the component library design. Before starting implementation, I designed an interactive wireframe and presented it to pilots to gather feedback. One interesting insight was the importance that color had - especially in cockpit instrumentation. Colors such as yellow/orange/red had to be used with clear intent, since the distinction between each color could communicate very different messages - from a slight performance degradation (that may be ignored) to an impeding danger.

Implementation

I built this tool with the following tech stack, which was quite enjoyable to use: Next.js, TypeScript, and Chakra UI. I built the component library and documented it using StoryBook, a visual documentation tool which makes it easier to preview a components utility and scope. I configured a testing suite using Jest for unit-tests and Cypress for end-to-ends testing.

Constant communication (especially listening!) with the pilots was crucial in ensuring the product fit all and every need. To share the ins and outs of the product, I generated and shared a user manual showing all of the product's functionality.

In Action

The flight test product finally took flight, after 7 months since beginning to work on the project. The first flight was uneventful - and that was the best news to hear.

One highlight was being able to operate the product from the backseat of a tandem-seat canard aircraft. It's not every day you get to battle-test your product while flying!

I hear the product is still going strong after 150+ flight hours...✈️
